| Part Number | B14 |
|---|---|
| Cross Reference | F00ZC99170, F00ZC99669 |
| Shim Size | Inner Ø3.4mm × Outer Ø5.5mm |
| Thickness Range | 1.20mm to 1.58mm |
| Customization | Thickness sizes available on request |
| Quantity | two boxes, 50 pieces per box, total 100 pieces |
| Condition | New |

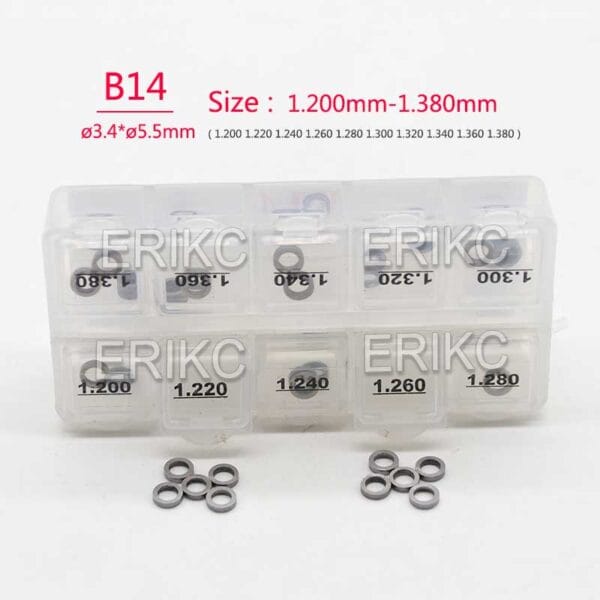

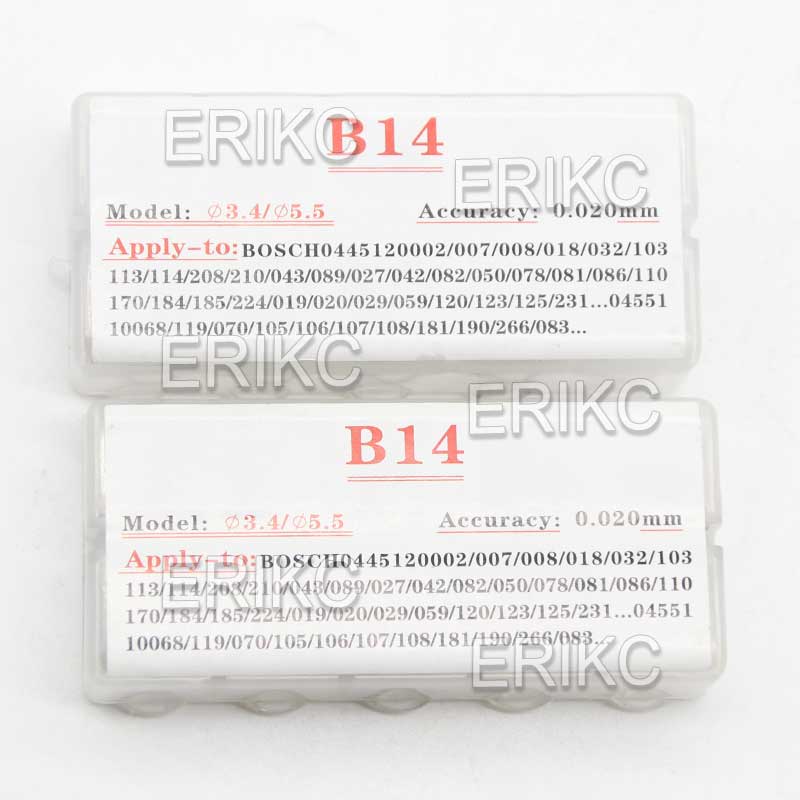

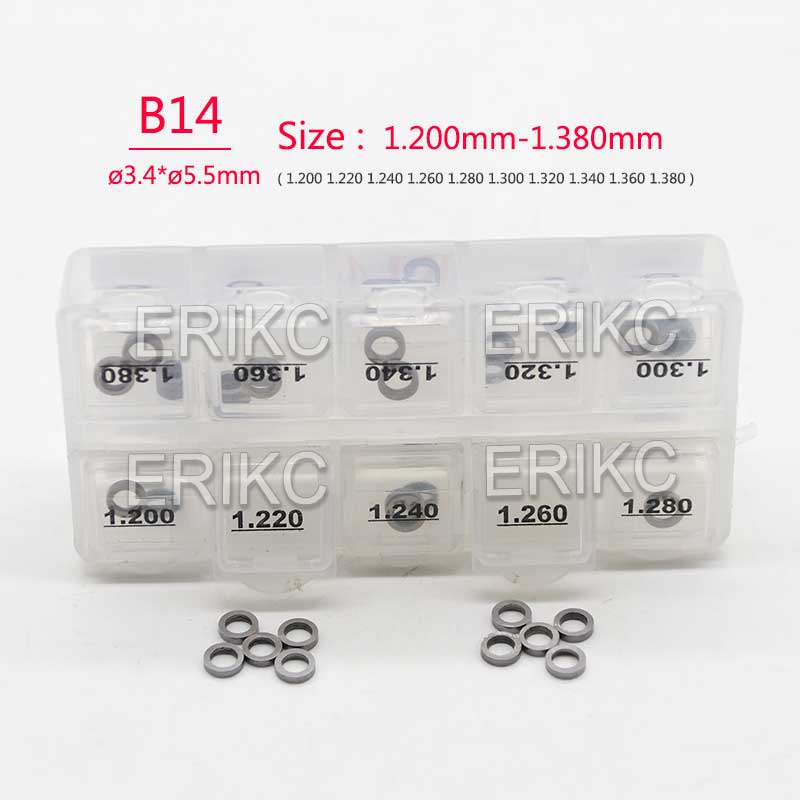

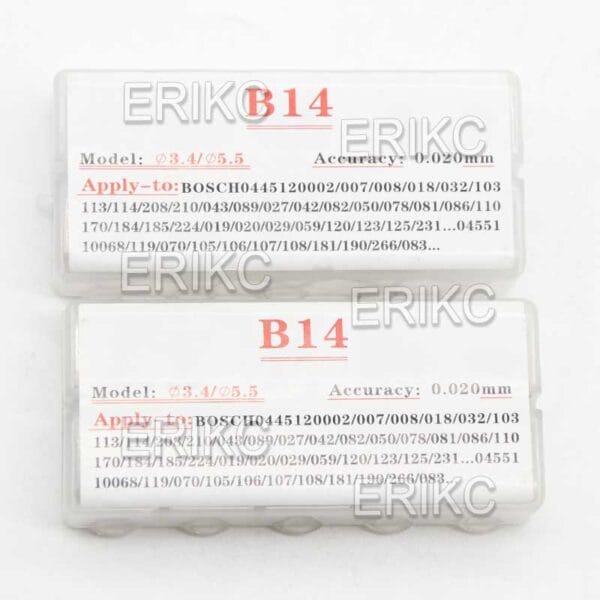

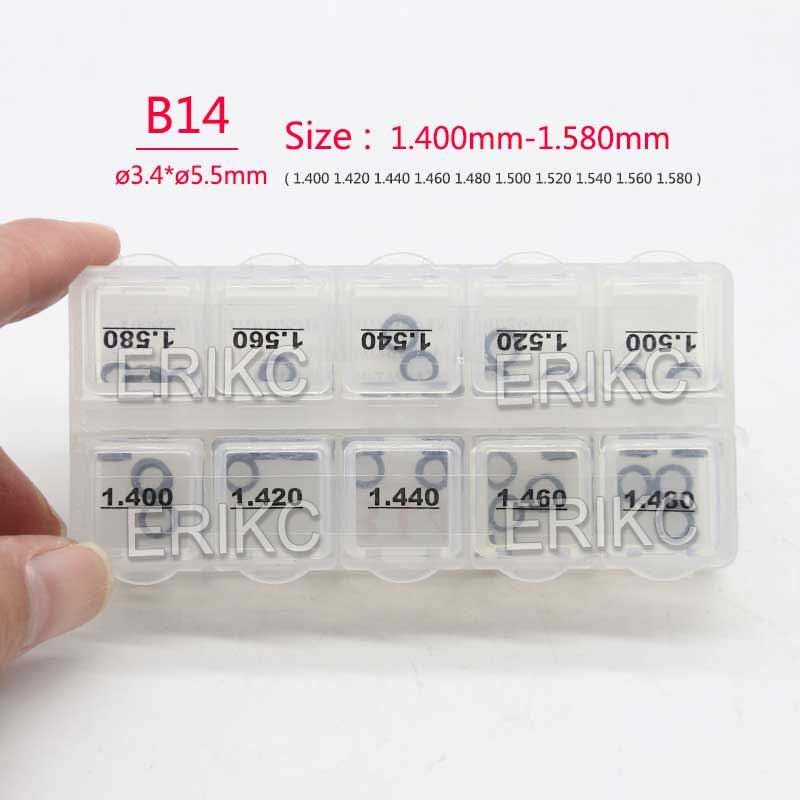

| Packaging Details | Each size individually packed in labeled compartments within a plastic organizer box |
| Application | Used to adjusting Valve spring force CRI1 and Nozzle spring force all |
| Brand | Customer Brand, ERIKC, Neutral |
| Material | High-precision hardened steel |
| Weight | 0.1 |
| Packaging Option | Customer Brand Packaging, ERIKC Packaging, Neutral Packaging |
| Warranty | 12 Month |
| Stock Availability | In Stock |
| Delivery Time | 1-3 Working days after payment, 5-10 Working days for bulk order |
| Payment Terms | T/T, Western Union, Paypal, Credit Card, Pix |
| Shipping Method | DHL, FEDEX, UPS, ARAMEX, Post Office, Sea |
| Certifications | CE, ISO9001 |
| Customer Support | For assistance, please contact us via: Email: info@dieselstart.com WhatsApp: +86 173 1971 4187, free technical support for installation and troubleshooting |

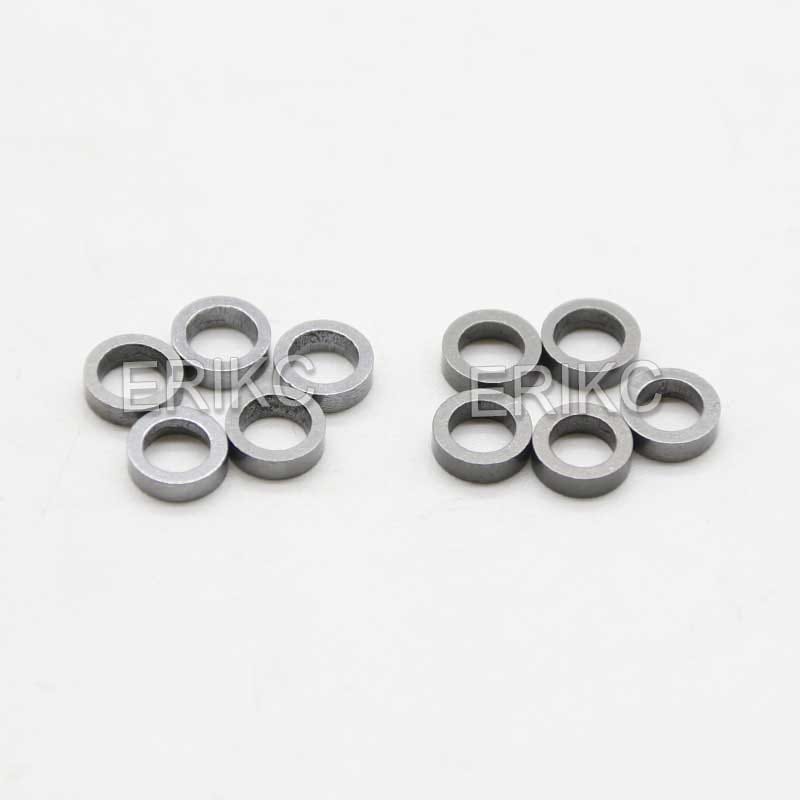

This B14 Shim Set is designed for BOSCH fuel injectors. It is compatible with models F00ZC99669 and F00ZC99170. These shims are used to adjust the valve spring force in CRI1 injectors and the nozzle spring force in both CRI and CRIN injectors. This helps the injector work correctly and deliver fuel properly. Custom thickness options are available for different repair or reman needs.
| Order Number | Old Number F00ZC99170 Includes Below Thickness Model | New Number F00ZC99669 Includes Below Thickness Model | Thickness(mm) | Order Number | Thickness(mm) |
| F00VC10570 | F00VC10460 | F00ZC99057 | 1.000 | F00VC10130 | 1.000 |
| F00VC10572 | F00VC10462 | F00ZC99058 | 1.020 | F00VC10132 | 1.040 |
| F00VC10574 | F00VC10464 | F00ZC99059 | 1.040 | F00VC10134 | 1.080 |
| F00VC10576 | F00VC10466 | F00ZC99060 | 1.060 | F00VC10136 | 1.120 |
| F00VC10578 | F00VC10468 | F00ZC99061 | 1.080 | F00VC10138 | 1.160 |
| F00VC10580 | F00VC10470 | F00ZC99062 | 1.100 | F00VC10140 | 1.200 |
| F00VC10582 | F00VC10472 | F00ZC99063 | 1.120 | F00VC10142 | 1.240 |
| F00VC10584 | F00VC10474 | F00ZC99064 | 1.140 | F00VC10144 | 1.280 |
| F00VC10586 | F00VC10476 | F00ZC99065 | 1.160 | F00VC10146 | 1.320 |
| F00VC10588 | F00VC10478 | F00ZC99066 | 1.180 | F00VC10148 | 1.360 |
| F00VC10590 | F00VC10480 | F00ZC99067 | 1.200 | F00VC10150 | 1.400 |
| F00VC10592 | F00VC10482 | F00ZC99068 | 1.220 | F00VC10152 | 1.440 |
| F00VC10594 | F00VC10484 | F00ZC99069 | 1.240 | F00VC10154 | 1.480 |
| F00VC10596 | F00VC10486 | F00ZC99070 | 1.260 | F00VC10156 | 1.520 |
| F00VC10598 | F00VC10488 | F00ZC99071 | 1.280 | F00VC10160 | 1.600 |
| F00VC10600 | F00VC10490 | F00ZC99072 | 1.300 | F00VC10162 | 1.640 |
| F00VC10602 | F00VC10492 | F00ZC99073 | 1.320 | F00VC10164 | 1.680 |
| F00VC10604 | F00VC10494 | F00ZC99074 | 1.340 | ||
| F00VC10606 | F00VC10496 | F00ZC99075 | 1.360 | ||
| F00VC10608 | F00VC10498 | F00ZC99076 | 1.380 | ||
| F00VC10610 | F00VC10500 | F00ZC99077 | 1.400 | ||
| F00VC10612 | F00VC10502 | F00ZC99078 | 1.420 | ||
| F00VC10614 | F00VC10504 | F00ZC99079 | 1.440 | ||
| F00VC10616 | F00VC10506 | F00ZC99080 | 1.460 | ||
| F00VC10618 | F00VC10508 | F00ZC99081 | 1.480 | ||
| F00VC10620 | F00VC10510 | F00ZC99082 | 1.500 | ||
| F00VC10622 | F00VC10512 | F00ZC99083 | 1.520 | ||
| F00VC10624 | F00VC10514 | F00ZC99084 | 1.540 | ||
| F00VC10626 | F00VC10516 | F00ZC99085 | 1.560 | ||
| F00VC10628 | F00VC10518 | F00ZC99086 | 1.580 | ||
| F00VC10630 | F00VC10520 | F00ZC99087 | 1.600 | ||
| F00VC10632 | F00VC10522 | F00ZC99088 | 1.620 | ||
| F00VC10634 | F00VC10524 | F00ZC99089 | 1.640 | ||
| F00VC10636 | F00VC10526 | F00ZC99090 | 1.660 | ||
| F00VC10638 | F00VC10528 | F00ZC99091 | 1.680 | ||
| F00VC10640 | F00VC10530 | F00ZC99092 | 1.700 | ||
| F00VC10642 | F00VC10532 | F00ZC99093 | 1.720 | ||
| F00VC10644 | F00VC10534 | F00ZC99094 | 1.740 | ||
| F00VC10646 | F00VC10536 | F00ZC99095 | 1.760 | ||
| F00VC10648 | F00VC10538 | F00ZC99096 | 1.780 | ||
| F00VC10650 | F00VC10540 | F00ZC99097 | 1.800 | ||
| F00VC10652 | F00VC10542 | F00ZC99098 | 1.820 | ||
| F00VC10654 | F00VC10544 | F00ZC99099 | 1.840 | ||
| F00VC10656 | F00VC10546 | F00ZC99100 | 1.860 | ||
| F00VC10658 | F00VC10548 | F00ZC99101 | 1.880 | ||
| F00VC10660 | F00VC10550 | F00ZC99102 | 1.900 | ||
| F00VC10662 | F00VC10552 | F00ZC99103 | 1.920 | ||
| F00VC10664 | F00VC10554 | F00ZC99104 | 1.940 | ||
| F00VC10666 | F00VC10556 | F00ZC99105 | 1.960 | ||
| F00VC10668 | F00VC10558 | F00ZC99106 | 1.980 | ||
| F00VC10670 | F00VC10560 | F00ZC99107 | 2.000 |
