| Part Number | B25 |
|---|---|
| Cross Reference | F00ZC99177, F00ZC99858 |
| Shim Size | Inner Ø19mm × Outer Ø23.7mm |
| Thickness Range | from 0.96mm to 1.14mm |
| Customization | Thickness sizes available on request |
| Quantity | 50 pieces per box |
| Condition | New |
| Packaging Details | Each size individually packed in labeled compartments within a plastic organizer box |
| Application | Used for adjusting Residual Air Gap and Armature Stroke in BOSCH CRI2.1 common rail injector |
| Brand | Customer Brand, ERIKC, Neutral |
| Material | High-precision hardened steel |
| Weight | 0.05 |
| Packaging Option | Customer Brand Packaging, ERIKC Packaging, Neutral Packaging |
| Warranty | 12 Month |
| Stock Availability | In Stock |
| Delivery Time | 1-3 Working days after payment, 5-10 Working days for bulk order |
| Payment Terms | T/T, Western Union, Paypal, Credit Card, Pix |
| Shipping Method | DHL, FEDEX, UPS, ARAMEX, Post Office, Sea |
| Certifications | CE, ISO9001 |
| Customer Support | For assistance, please contact us via: Email: info@dieselstart.com WhatsApp: +86 173 1971 4187, free technical support for installation and troubleshooting |

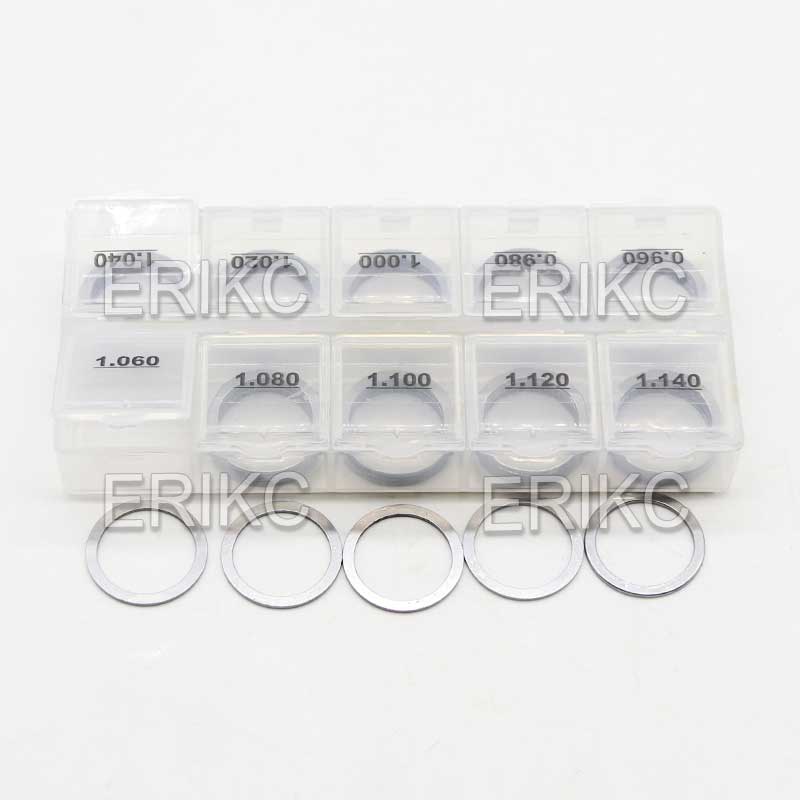

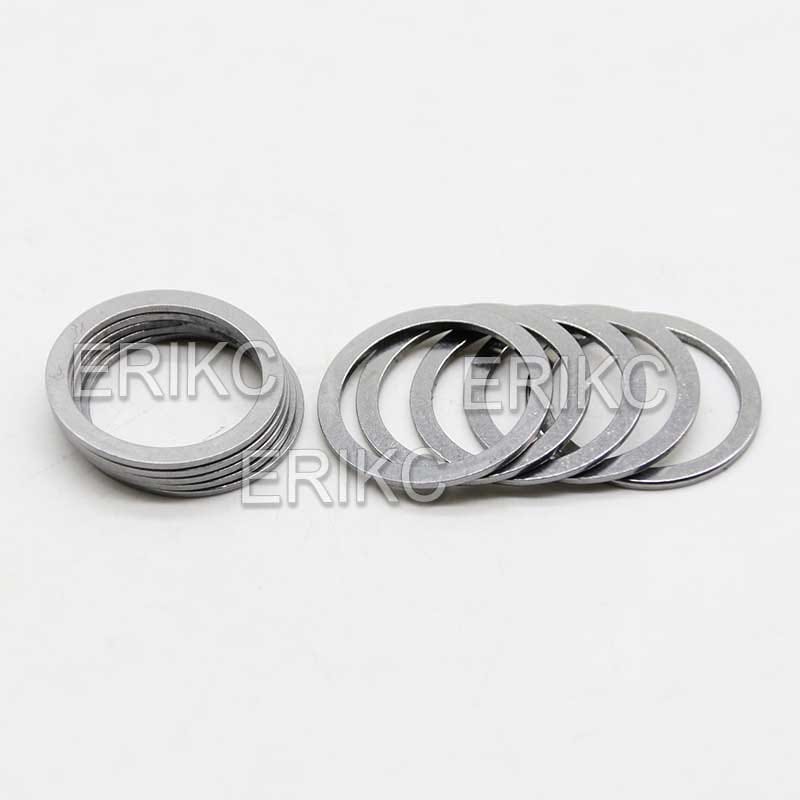

This B25 Shim Set is designed for BOSCH CRI2.1 common rail injectors. It is compatible with BOSCH part numbers F00ZC99177 and F00ZC99858. These precision shims are used to adjust both the residual air gap and armature stroke, helping restore proper injector function and fuel delivery.

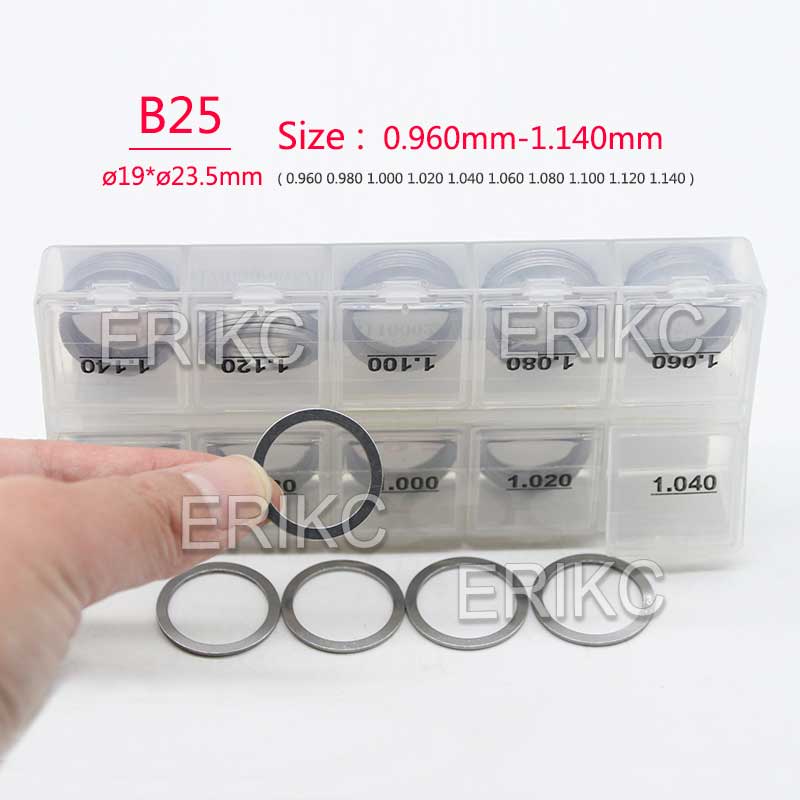

Size: Inner Ø19mm × Outer Ø23.7mm
Thickness Range: 0.96–1.14mm
Quantity: 50 pieces per box
Custom thickness options are available to meet different repair or remanufacturing needs.
| Order Number | Old Number F00RJ02759 Includes Below Thickness Model | New Number F00ZC99177 Includes Below Thickness Model | Thickness(mm) |
| F00VC60175 | F00ZC99859 | F00ZC99300 | 0.860 |
| F00VC60177 | F00ZC99860 | F00ZC99301 | 0.864 |
| F00VC60179 | F00ZC99861 | F00ZC99302 | 0.868 |
| F00VC60181 | F00ZC99862 | F00ZC99303 | 0.872 |
| F00VC60183 | F00ZC99863 | F00ZC99304 | 0.876 |
| F00VC60185 | F00ZC99864 | F00ZC99305 | 0.880 |
| F00VC60187 | FO0ZC99865 | F00ZC99306 | 0.884 |
| F00VC60189 | F00ZC99866 | F00ZC99307 | 0.888 |
| F00VC60191 | F00ZC99867 | F00ZC99308 | 0.892 |
| F00VC60193 | F00ZC99868 | F00ZC99309 | 0.896 |
| F00VC60195 | F00ZC99869 | F00ZC99310 | 0.900 |
| F00VC60197 | F00ZC99870 | F00ZC99311 | 0.904 |
| F00VC60199 | F00ZC99871 | F00ZC99312 | 0.908 |
| F00VC60201 | F00ZC99872 | F00ZC99313 | 0.912 |
| F00VC60203 | F00ZC99873 | F00ZC99314 | 0.916 |
| F00VC60205 | F00ZC99874 | F00ZC99315 | 0.920 |
| F00VC60207 | F00ZC99875 | F00ZC99316 | 0.924 |
| F00VC60209 | F00ZC99876 | F00ZC99317 | 0.928 |
| F00VC60211 | F00ZC99877 | F00ZC99318 | 0.932 |
| F00VC60213 | F00ZC99878 | F00ZC99319 | 0.936 |
| F00VC60215 | F00ZC99879 | F00ZC99320 | 0.940 |
| F00VC60217 | F00ZC99880 | F00ZC99321 | 0.944 |
| F00VC60219 | F00ZC99881 | F00ZC99322 | 0.948 |
| F00VC60221 | F00ZC99882 | F00ZC99323 | 0.952 |
| F00VC60223 | F00ZC99883 | F00ZC99324 | 0.956 |
| F00VC60225 | F00ZC99884 | F00ZC99325 | 0.960 |
| F00VC60227 | F00ZC99885 | F00ZC99326 | 0.964 |
| F00VC60229 | F00ZC99886 | F00ZC99327 | 0.968 |
| F00VC60231 | F00ZC99887 | F00ZC99328 | 0.972 |
| F00VC60233 | F00ZC99888 | F00ZC99329 | 0.976 |
| F00VC60235 | F00ZC99889 | F00ZC99330 | 0.980 |
| F00VC60237 | F00ZC99890 | F00ZC99331 | 0.984 |
| F00VC60239 | F00ZC99891 | F00ZC99332 | 0.988 |
| F00VC60241 | F00ZC99892 | F00ZC99333 | 0.992 |
| F00VC60243 | F00ZC99893 | F00ZC99334 | 0.996 |
| F00VC60245 | F00ZC99894 | F00ZC99335 | 1.000 |
| F00VC60247 | F00ZC99895 | F00ZC99336 | 1.004 |
| F00VC60249 | F00ZC99896 | F00ZC99337 | 1.008 |
| F00VC60251 | F00ZC99897 | F00ZC99338 | 1.012 |
| F00VC60253 | F00ZC99898 | F00ZC99339 | 1.016 |
| F00VC60255 | F00ZC99899 | F00ZC99340 | 1.020 |
| F00VC60257 | F00ZC99900 | F00ZC99341 | 1.024 |
| F00VC60259 | F00ZC99901 | F00ZC99342 | 1.028 |
| F00VC60261 | F00ZC99902 | F00ZC99343 | 1.032 |
| F00VC60263 | F00ZC99903 | F00ZC99344 | 1.036 |
| F00VC60265 | F00ZC99904 | F00ZC99345 | 1.040 |
| F00VC60267 | F00ZC99905 | F00ZC99346 | 1.044 |
| F00VC60269 | F00ZC99906 | F00ZC99347 | 1.048 |
| F00VC60271 | F00ZC99907 | F00ZC99348 | 1.052 |
| F00VC60273 | F00ZC99908 | F00ZC99349 | 1.056 |
| F00VC60275 | F00ZC99909 | F00ZC99350 | 1.060 |
| F00VC60277 | F00ZC99910 | F00ZC99351 | 1.064 |
| F00VC60279 | F00ZC99911 | F00ZC99352 | 1.068 |
| F00VC60281 | F00ZC99912 | F00ZC99353 | 1.072 |
| F00VC60283 | F00ZC99913 | F00ZC99354 | 1.076 |
| F00VC60285 | F00ZC99914 | F00ZC99355 | 1.080 |
| F00VC60287 | F00ZC99915 | F00ZC99356 | 1.084 |
| F00VC60289 | F00ZC99916 | F00ZC99357 | 1.088 |
| F00VC60291 | F00ZC99917 | F00ZC99358 | 1.092 |
| F00VC60293 | F00ZC99918 | F00ZC99359 | 1.096 |
| F00VC60295 | F00ZC99919 | F00ZC99360 | 1.100 |
| F00VC60297 | F00ZC99920 | F00ZC99361 | 1.104 |
| F00VC60299 | F00ZC99921 | F00ZC99362 | 1.108 |
| F00VC60301 | F00ZC99922 | F00ZC99363 | 1.112 |
| F00VC60303 | F00ZC99923 | F00ZC99364 | 1.116 |
| F00VC60305 | F00ZC99924 | F00ZC99365 | 1.120 |
| F00VC60307 | F00ZC99925 | F00ZC99366 | 1.124 |
| F00VC60309 | F00ZC99926 | F00ZC99367 | 1.128 |
| F00VC60311 | F00ZC99927 | F00ZC99368 | 1.132 |
| F00VC60313 | F00ZC99928 | F00ZC99369 | 1.136 |
| F00VC60315 | F00ZC99929 | F00ZC99370 | 1.140 |
| F00VC60317 | F00ZC99930 | F00ZC99371 | 1.144 |
| F00VC60319 | F00ZC99931 | F00ZC99372 | 1.148 |
| F00VC60321 | F00ZC99932 | F00ZC99373 | 1.152 |
| F00VC60323 | F00ZC99933 | F00ZC99374 | 1.156 |
| F00VC60325 | F00ZC99934 | F00ZC99375 | 1.160 |
| F00VC60327 | F00ZC99935 | F00ZC99376 | 1.164 |
| F00VC60329 | F00ZC99936 | F00ZC99377 | 1.168 |
| F00VC60331 | F00ZC99937 | F00ZC99378 | 1.172 |
| F00VC60333 | F00ZC99938 | F00ZC99379 | 1.176 |
| F00VC60335 | F00ZC99939 | F00ZC99380 | 1.180 |
| F00VC60337 | F00ZC99940 | F00ZC99381 | 1.184 |
| F00VC60339 | F00ZC99941 | F00ZC99382 | 1.188 |
| F00VC60341 | F00ZC99942 | F00ZC99383 | 1.192 |
| F00VC60343 | F00ZC99943 | F00ZC99384 | 1.196 |
| F00VC60345 | F00ZC99944 | F00ZC99385 | 1.200 |
| F00VC60347 | F00ZC99945 | F00ZC99386 | 1.204 |
| F00VC60349 | F00ZC99946 | F00ZC99387 | 1.208 |
| F00VC60351 | F00ZC99947 | F00ZC99388 | 1.212 |
| F00VC60353 | F00ZC99948 | F00ZC99389 | 1.216 |
| F00VC60355 | F00ZC99949 | F00ZC99390 | 1.220 |
| F00VC60357 | F00ZC99950 | F00ZC99391 | 1.224 |
| F00VC60359 | F00ZC99951 | F00ZC99392 | 1.228 |
| F00VC60361 | F00ZC99952 | F00ZC99393 | 1.232 |
| F00VC60363 | F00ZC99953 | F00ZC99394 | 1.236 |
| F00VC60365 | F00ZC99954 | F00ZC99395 | 1.240 |
