Introduction: The Role of Nozzles in Diesel Injection Systems
In diesel injection systems, the injector nozzle is a vital component responsible for delivering fuel into the combustion chamber in a precise, high-pressure spray. Siemens VDO (now Continental) has developed a wide range of high-performance nozzles used in diesel vehicles from brands such as BMW, Ford, Peugeot, and Renault.

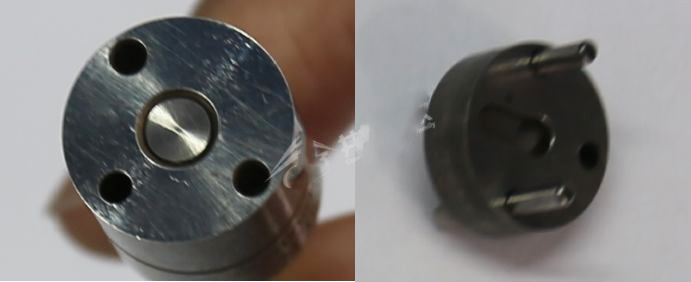

Siemens piezoelectric injectors adopt a sunken nozzle design, where the nozzle needle and nozzle body are not on the same plane. The nozzle is sealed with a separator, and the diameter of the nozzle needle is larger than the diameter of the central hole in the separator. The sinking distance of the nozzle needle, which is the nozzle needle lift of the injector, is approximately 230 micrometers.
This blog offers an overview of key Siemens VDO injector nozzles, including their compatible injector models, supported engines and vehicles, and nozzle spray hole specifications.
Why Choose ERIKC Diesel: Reliable Alternatives to OEM Nozzles

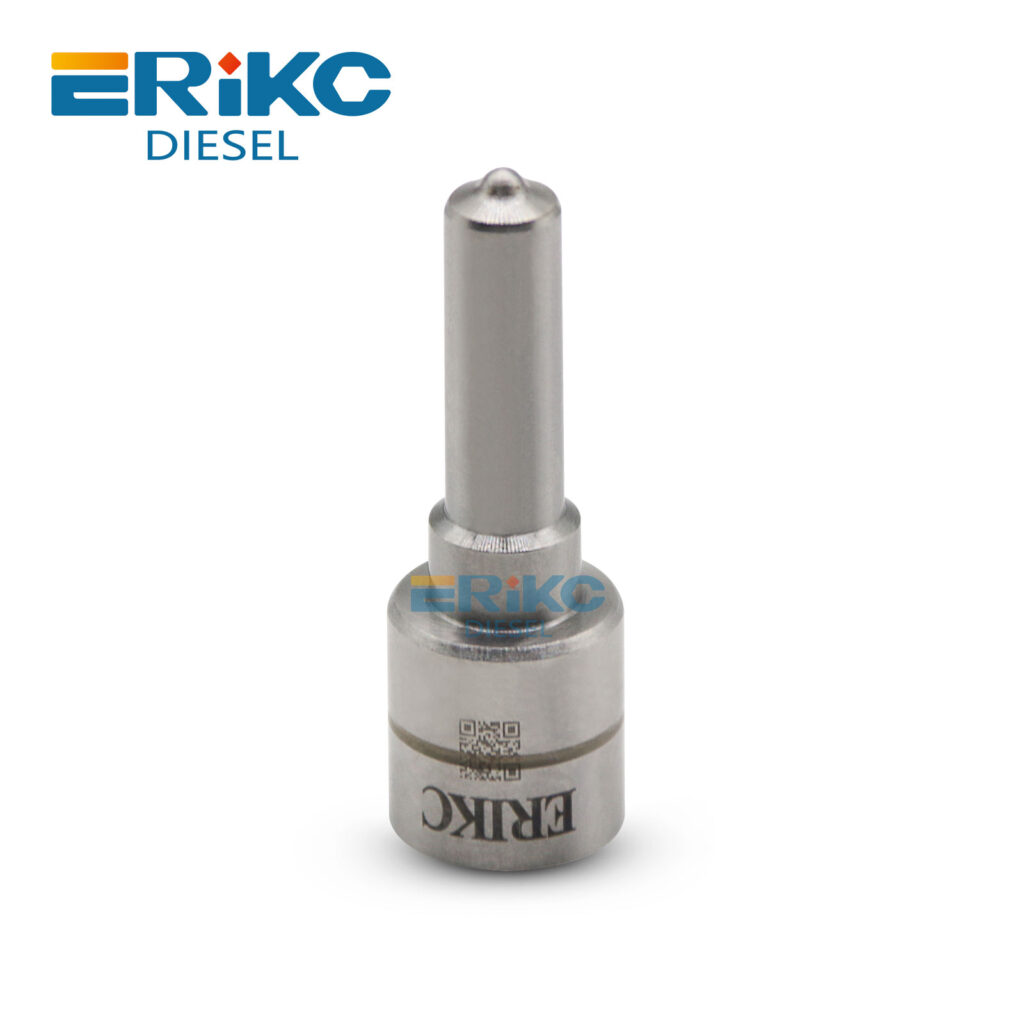

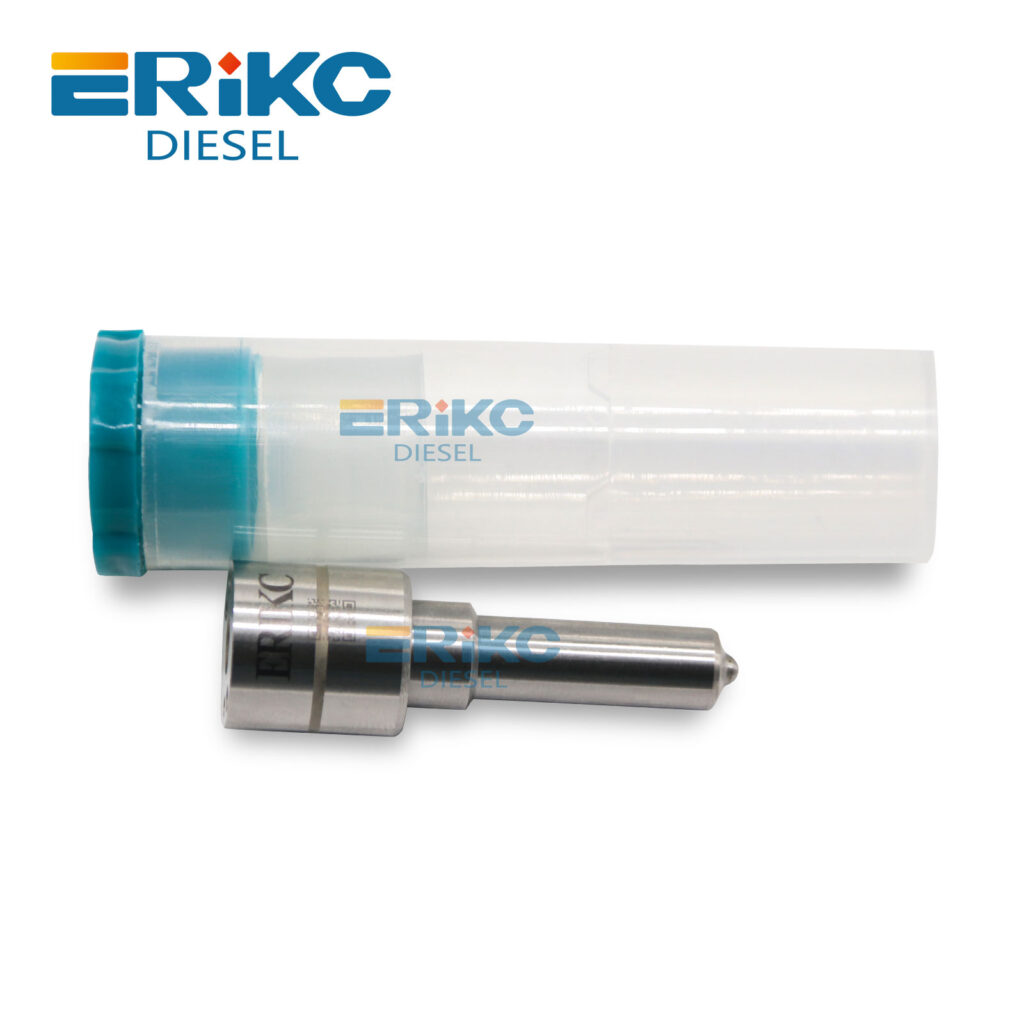

At ERIKC Diesel, we offer precision-engineered diesel injector nozzles designed to meet OEM performance standards. Our nozzles are fully compatible with Siemens VDO injector systems and are manufactured under strict quality control procedures to ensure durability, efficiency, and optimal fuel atomization.
Our Product Highlights
✔️ High-precision machining for accurate fuel atomization
✔️ Direct replacement for Siemens VDO nozzles
✔️ Compatible with international diesel platforms
✔️ Bulk supply and private label support available
Siemens VDO Injector Nozzle Compatibility Chart
The following chart lists commonly used Siemens VDO/Continental injector nozzles, their compatible injector models, supported vehicle engines, and spray hole specifications:
Each nozzle is precisely engineered to meet modern diesel engine requirements for combustion and emissions standards.
| VDO Stamping | Other Code | Other Code | VDO Injector Code | OE code | Vehicle/ Engine | |
|---|---|---|---|---|---|---|
| M 0019 P 140 (M0019P140) | DLLA 140 PM 0019 (DLLA140PM0019) | ALLA 140 PM 019 (ALLA140PM019) | A2C59517051 A2C33352600 | CITROEN 9801125480 FORD BK2Q-9K546-AG FORD 1840747 FORD 1746967 PEUGEOT 9801125480 | CITROEN JUMPER Bus 2.0 BlueHDi 110 CITROEN JUMPER Bus 2.2 HDi 110 CITROEN JUMPER Bus 2.2 HDi 130 CITROEN JUMPER Bus 2.2 HDi 150 CITROEN JUMPER Kasten 2.0 BlueHDi 110 CITROEN JUMPER Kasten 2.0 BlueHDi 130 CITROEN JUMPER Kasten 2.2 HDi 110 CITROEN JUMPER Kasten 2.2 HDi 130 CITROEN JUMPER Kasten 2.2 HDi 150 CITROEN JUMPER Pritsche/Fahrgestell 2.0 BlueHDi 110 CITROEN JUMPER Pritsche/Fahrgestell 2.0 BlueHDi 130 CITROEN JUMPER Pritsche/Fahrgestell 2.2 HDi 110 CITROEN JUMPER Pritsche/Fahrgestell 2.2 HDi 130 CITROEN JUMPER Pritsche/Fahrgestell 2.2 HDi 150 FORD Ranger 2.2 TDCI FORD Ranger 3.2 TDCI FORD Transit 2.2 TDCI | |
| M 0604 P 142 (M0604P142) | DLLA 142 PM 604 (DLLA142PM604) | ALLA 142 PM 604 (ALLA142PM604) | 5WS40149-Z A2C59511612 A2C59513998 | CITROEN 1980L0 CITROEN 00001980L0 MAZDA Y404-13-250A PEUGEOT 00001980L0 PEUGEOT 9663429280 PEUGEOT 1980L0 | CITROEN C2 1.4 HDi CITROEN C3 I 1.4 HDi CITROEN C3 II 1.4 HDi PEUGEOT 307 / 1007 CITROEN C1/C2/C3 FORD FIESTA FUSION | |
| M 0031 P 145 (M0031P145) | DLLA 145 PM 031 (DLLA145PM031) | ALLA 145 PM 031 (ALLA145PM031) | 5WS40932 A2C39997000 A2C3999700080 | AVISTAR 7001105C1 FORD BK2Q-9K546-AG FORD BK2K9K546AG | FORD TROLLER 3.2 FORD Ranger 3.2 Land Rover Discovery | |
| M 0007 P 147.6 (M0007P147.6) | DLLA 147 PM 007 (DLLA147PM007) | ALLA 147 PM 007 (ALLA147PM007) | A2C20009366 A2C59511606 5WS40087 | 166009445R RENAULT 8200380253 RENAULT 8200842205 RENAULT 16600 00Q1T NISSAN 16600 00Q0H NISSAN 16600 00Q0P NISSA | NISSAN Note I NISSAN Qashqai / Qashqai+2 I NISSAN Tiida Sedan/ Hatchback RENAULT Megane II RENAULT Scenic II RENAULT Clio III RENAULT Laguna III RENAULT Kangoo II | |
| M 0032 P 150 (M0032P150) | DLLA 150 PM 032 (DLLA150PM032) | ALLA 150 PM 032 (ALLA150PM032) | A2C3335190080 | 166000372R RENAULT 166092452R RENAULT 95523536 GENERAL MOTORS 166093282R RENAULT 166097675R RENAULT 166007840R RENAULT 1660000Q2K NISSAN 1660000Q2F NISSAN 1660000Q2H NISSAN 95519033 GENERAL MOTORS 95523532 GENERAL MOTORS 44 23 649 OPEL | NISSAN NV400 Van – Bus -Truck OPEL Movano B Van – Bus -Truck RENAULT Master III Van – Bus -Truck VAUXHALL Movano Mk2 Van – Combi - Truck | |
| M 0034 P 150 (M0034P150) | DLLA 150 PM 034 (DLLA150PM034) | ALLA 150 PM 034 (ALLA150PM034) | A2C8139490080 A2C59514036 | CK4Q-9K546-AA FORD 1819881 FORD | FORD Ranger Mk3 | |
| M 1600 P 150 (M1600P150) | DLLA 150 PM 1600 (DLLA150PM1600) | ALLA 150 PM 1600 (ALLA150PM1600) | 5WS40080 A2C59515264 A2C20009347 | MWM 77550 FORD LK2400684 | FORD RANGER 3.0 TD TROLLER T4 3.0 TROLLER PANTANAL 3.0 | |
| M 1001 P 152 (M1001P152) | DLLA 152 PM 1001 (DLLA152PM1001) | ALLA 152 PM 1001 (ALLA152PM1001) | A2C59511610 AC259514911 5WS40086 | FORD 4M5Q-9F593-AD FORD 1355051 | FORD C-MAX 1.8 TDCi FORD FOCUS 1.8 TDCi FORD FOCUS Stufenheck 1.8 TDCi FORD FOCUS Turnier 1.8 TDCi FORD FOCUS C-MAX 1.8 TDCi FORD FOCUS II 1.8 TDCi FORD FOCUS II Stufenheck 1.8 TDCi FORD FOCUS II Turnier 1.8 TDCi FORD GALAXY 1.8 TDCi FORD MONDEO IV 1.8 TDCi FORD MONDEO IV Stufenheck (BA7) 1.8 TDCi FORD S-MAX (WS) 1.8 TDCi FORD TOURNEO CONNECT 1.8 TDCi /TDDi /DI FORD TOURNEO CONNECT 1.8 TDCi FORD TRANSIT CONNECT 1.8 Di FORD TRANSIT CONNECT 1.8 TDCi | |
| M 1003 P 152 (M1003P152) | DLLA 152 PM 1003 (DLLA152PM1003) | ALLA 152 PM 1003 (ALLA152PM1003) | A2C59514912 A2C59511611 5WS40250 | FORD 7T1Q-9F593-AB FORD 1432322 | FORD TOURNEO CONNECT 1.8 TDCi /TDDi /DI FORD TOURNEO CONNECT 1.8 TDCi FORD TRANSIT CONNECT 1.8 Di FORD TRANSIT CONNECT 1.8 TDCi FORD FOCUS C-MAX, C-MAX, GALAXY FORD MONDEO III/IV, S-MAX | |
| M 003 P 153 (M003P153) | DLLA 153 PM 003 (DLLA153PM003) | ALLA 153 PM 003 (ALLA153PM003) | 5WS40156-4Z | CITROEN 00001980J4 CITROEN 1980J4 FIAT 9657144680 FORD 3M5Q-9F593-DB FORD 1373549 PEUGEOT 1980J4 PEUGEOT 00001980J4 VOLVO 36000315 VOLVO 36000317 | CITROEN C4 I 2.0 HDi CITROEN C4 Coupe 2.0 HDi CITROEN C5 II 2.0 HDi CITROEN C5 II Break 2.0 HDi PEUGEOT 307 / 407 / 607 / 807 CITROEN XSARA FORD C-MAX | |
| 5WS40156-Z | CITROEN 1980J5 CITROEN 00001980J5 FORD 1373550 FORD 3M5Q9F593EB PEUGEOT 1980J5 PEUGEOT 00001980J5 VOLVO 36000319 VOLVO 36000318 | |||||
| M 0004 P 153 (M0004P153) | DLLA 153 PM 004 (DLLA153PM004) | ALLA 153 PM 004 (ALLA153PM004) | A2C59513597 5WS40387 5WS40253 A2C59513596 | 6H4Q9K546DB LAND ROVER LR002473 LAND ROVER LR002475 LAND ROVER LR0008832 LAND ROVER LR0008834 LAND ROVER | LAND ROVER Range Rover III LAND ROVER Range Rover Sport | |
| M 0005 P 153 (M0005P153) | DLLA 153 PM 005 (DLLA153PM005) | ALLA 153 PM 005 (ALLA153PM005) | A2C59514910 A2C59511602 5WS40200 | CITROEN 1980K5 CITROEN 00001980K5 FIAT 9659337980 PEUGEOT 1980K5 PEUGEOT 00001980K5 | CITROEN C8 2.0 HDi CITROEN JUMPY 2.0 HDi 120 CITROEN JUMPY Kasten 2.0 HDi 120 FIAT ULYSSE FIAT SCUDO | |
| M 0601 P 153 (M0601P153) | DLLA 153 PM 601 (DLLA153PM601) | ALLA 153 PM 601 (ALLA153PM601) | PEUGEOT, CITROEN, FORD, VOLVO | |||
| M 1002 P 153 (M1002P153) | DLLA 153 PM 1002 (DLLA153PM1002) | ALLA 153 PM 1002 (ALLA153PM1002) | A2C59511316 5WS40103 | 1980H1 PEUGEOT 02C2S40004 JAGUAR 00001980H1 CITROEN | CITROEN C5 III JAGUAR S-Type JAGUAR XF Sedan PEUGEOT 407 PEUGEOT 607 | |
| M 0600 P 154 (M0600P154) | DLLA 154 PM 006 (DLLA154PM006) | ALLA 154 PM 006 (ALLA154PM006) | 1875702C91 8C3Z-9E527-DRM FORD 1875072C91 INTERNATIONAL HARV. OE 8C3Z 9E527-A FORD OE 8C3Z 9E527-DRM FORD | Ford Powerstroke 6.4L | ||
| M 0012 P 154 (M0012P154) | DLLA 154 PM 012 (DLLA154PM012) | ALLA 154 PM 012 (ALLA154PM012) | 5WS540677 A2C59513556 | CITROEN 1980ET CITROEN 00001980R9 CITROEN 00001980ET CITROEN 9802448680 CITROEN 1980S0 CITROEN 1980ER CITROEN 1980R9 CITROEN 00001980ER CITROEN 00001980S0 FORD 1791017 FORD 1812616 PEUGEOT 1980ET PEUGEOT 1980S0 PEUGEOT 00001980ET PEUGEOT 00001980R9 PEUGEOT 1980ER PEUGEOT 00001980ER PEUGEOT 9802448680 PEUGEOT 00001980S0 PEUGEOT 1980R9 VOLVO 36001726 VOLVO 36001728 VOLVO 36001727 VOLVO 36001729 | CITROEN BERLINGO 1.6 HDi CITROEN BERLINGO Kasten 1.6 HDi CITROEN BERLINGO Pritsche/Fahrgestell (B9) 1.6 HDi 90 16V CITROEN C3 II 1.6 HDi CITROEN C3 Picasso 1.6 HDi CITROEN C4 II 1.6 HDi CITROEN C4 Picasso I Großraumlimousine 1.6 HDi CITROEN C4 Picasso II 1.6 HDi / BlueHDi CITROEN C4 Grand Picasso I 1.6 HDi CITROEN C4 AIRCROSS 1.6 HDi CITROEN C5 III 1.6 HDi CITROEN C5 III Break 1.6 HDi CITROEN DS3/ DS4/ DS5 1.6 HDi FORD MAZDA VOLVO 1.6 cDi | |
| M 0008 P 155 (M0008P155) | DLLA 155 PM 008 (DLLA155PM008) | ALLA 155 PM 008 (ALLA155PM008) | 5WS540536 A2C59513484 A2C5321655180 | DACIA 16 60 080 52R DACIA 16 60 043 05R DACIA 8200903034 NISSAN 16600-00Q1F RENAULT 16600-4305R RENAULT 8200903034 RENAULT 16600-8052R | DACIA DUSTER 1.5 dCi DACIA DUSTER 1.5 dCi 4x4 DACIA DUSTER Kasten 1.5 dCi DACIA DUSTER Kasten 1.5 dCi 4x4 DACIA LODGY 1.5 dCi | |
| M 0018 P 155 (M0018P155) | DLLA 155 PM 018 (DLLA155PM018) | ALLA 155 PM 018 (ALLA155PM018) | A2C59511364 5WS40249 5WS40062 | Ford 4H2Q-9K546-AF Land Rover LR008836 Land Rover LR006495 | Land Rover Discovery Land Rover Range Rover | |
| M 0027 P 155 (M0027P155) | DLLA 155 PM 027 (DLLA155PM027) | ALLA 155 PM 027 (ALLA155PM027) | A2C59507596 | RENAULT 166006212R RENAULT 8201041272 RENAULT 166006526R RENAULT 1660000Q1W DACIA 16 60 062 12R DACIA 8201041272 DACIA 16 60 065 26R MERCEDES A 607 070 02 00 MERCEDES A 607 070 00 87 | MERCEDES CITAN MERCEDES CLASSE A – B MERCEDES GLA – CLA RENAULT CAPTUR RENAULT GRAND SCENIC RENAULT KADJAR RENAULT KANGOO – MEGANE III NISSAN JUKE - QASHQAI | |
| M 0002 P 156 (M0002P156) | DLLA 156 PM 002 (DLLA156PM002) | ALLA 156 PM 002 (ALLA156PM002) | 5WS40249 | 4H2Q-9K54-6AF* FORD LR006495* LAND ROVER LR008836* LAND | LAND ROVER Discovery III LAND ROVER Range Rover Sport | |
| M 0011 P 162 (M0011P162) | DLLA 162 PM 011 (DLLA162PM011) | ALLA 162 PM 011 (ALLA162PM011) | 5WS40539 A2C59513554 A2C9626040080 A2C5325696180 | AUDI 03L 130 277 B SEAT 03L 130 277 B VW 03L 130 277 B SKODA 03L 130 277 B | AUDI A1/A1 Sportback AUDI A3/A3 Sportback SEAT ALTEA, IBIZA, TOLEDO SKODA FABIA, OCTAVIA, RAPID, ROOMSTER VW GOLF VI, PASSAT, POLO, TOURAN | |
| V 0600 P 142 (V0600P142) | DSLA 142 PV 600 (DSLA142PV600) | ASLA 142 PV 600 (ASLA142PV600) | 5WS40000-Z | CITROEN 1980F0 CITROEN 00001980F0 CITROEN 9652173780 PEUGEOT 9652173780 PEUGEOT 00001980F0 PEUGEOT 1980F0 | CITROEN BERLINGO / BERLINGO FIRST Großraumlimousine 2.0 HDI CITROEN BERLINGO / BERLINGO FIRST Kasten 2.0 HDI CITROEN C5 I 2.0 HDi CITROEN C5 I Break 2.0 HDi CITROEN XSARA 2.0 HDi 90 CITROEN XSARA Break 2.0 HDI CITROEN XSARA Coupe 2.0 HDI PEUFEOT 307/407 PEUGEOT Partener 406 Facelift | |
| V 0602 P 144 (V0602P144) | DSLA 144 PV 602 (DSLA144PV602) | ASLA 144 PV 602 (ASLA144PV602) | PEUGEOT1007/307 TOYOTA AYGO MAZDA 2 CITROEN C1/C2/C3 | |||
| V 0605 P 144 (V0605P144) | DSLA 144 PV 605 (DSLA144PV605) | ASLA 144 PV 605 (ASLA144PV605) | 5WS40148-Z A2C59513997 | CITROEN 00001980E7 CITROEN 9655304880 CITROEN 9655304780 FORD 2S6Q9F593AB FORD 2S6Q9F593AA FORD 2S6Q9F593BB FORD 2S6Q9F593AC PEUGEOT 1980E7 PEUGEOT 00001980E7 PEUGEOT 9655304880 PEUGEOT 9655304780 | CITROEN C3 Pluriel 1.4 HDi PEUGEOT 307 / 1007 CITROEN C1/C2/C3 FORD FIESTA FUSION | |
| V 203 P 152 (V203P152) | DSLA 152 PV 203 (DSLA152PV203) | ASLA 152 PV 203 (ASLA152PV203) | 03G 130 073T* VW 03G 130 073T* AUDI 03G 130 073T* SEAT 03G 130 073T* SKODA | AUDI A3, A4 SEAT Altea, Leon, Toledo SKODA Octavia VW Golf, Passat, Touran | ||
| V 208 P 152 (V208P152) | DSLA 152 PV 208 (DSLA152PV208) | ASLA 152 PV 208 (ASLA152PV208) | 03G 130 073T* VW 03G 130 073T* AUDI 03G 130 073T* SEAT 03G 130 073T* SKODA | AUDI A3, A4 SEAT Altea, Leon, Toledo SKODA Octavia VW Golf, Passat, Touran |

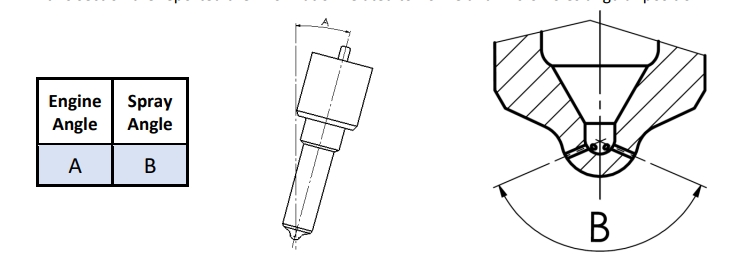

| SIEMENS VDO Stamping | ERIKC Code | Other Code | Engine Angle | Spray Angle | Holes |
|---|---|---|---|---|---|
| M 0019 P 140 (M0019P140) | DLLA 140 PM 019 (DLLA140PM019) | ALLA 140 PM 019 (ALLA140PM019) | 0° | 140° | 8x0.120 |
| V 0600 P 142 (V0600P142) | DSLA 140 PV 600 (DSLA140PV600) | ASLA 140 PV 600 (ASLA140PV600) | 15° | 142° | 5x0.160 |
| M 0604 P 142 (M0604P142) | DLLA 142 PM 604 (DLLA142PM604) | ALLA 142 PM 604 (ALLA142PM604) | 12°30’ | 142° | 6x0.110 |
| V 0602 MP 144 (V0602MP144) | DSLA 144 PV 602 (DSLA144PV602) | ASLA 144 PV 602 (ASLA144PV602) | 14° | 144° | 6x0.110 |
| V 605 P 144 (V605P144) | DSLA 144 PV 605 (DSLA144PV605) | ASLA 144 PV 605 (ASLA144PV605) | 14° | 144° | 6x0.110 |
| M 0031 P 145 (M0031P145) | DLLA 145 PM 031 (DLLA145PM031) | ALLA 145 PM 031 (ALLA145PM031) | 0° | 145° | 7x0.160 |
| M 0007 P 147.6 (M0007P147.6) | DLLA 147 PM 007 (DLLA147PM007) | ALLA 147 PM 007 (ALLA147PM007) | 14° | 147° | 6x0.120 |
| M 0032 P 150 (M0032P150) | DLLA 150 PM 032 (DLLA150PM032) | ALLA 150 PM 032 (ALLA150PM032) | 0° | 150° | 7x0.135 |
| M 0034 P 150 (M0034P150) | DLLA 150 PM 034 (DLLA150PM034) | ALLA 150 PM 034 (ALLA150PM034) | 0° | 150° | 8x0.120 |
| M 1600 P 150 (M1600P150) | DLLA 150 PM 1600 (DLLA150PM1600) | ALLA 150 PM 1600 (ALLA150PM1600) | 0° | 150° | 6x0.195 |
| M 1001 P 152 (M1001P152) | DLLA 152 PM 1001 (DLLA152PM1001) | ALLA 152 PM 1001 (ALLA152PM1001) | 19° | 152° | 7x0.125 |
| M 1003 P 152 (M1003P152) | DLLA 152 PM 1003 (DLLA152PM1003) | ALLA 152 PM 1003 (ALLA152PM1003) | 19°30’ | 152° | 7x0.110 |
| V 203 P 152 (V203P152) | DSLA 152 PV 203 (DSLA152PV203) | ASLA 152 PV 203 (ASLA152PV203) | 0° | 152° | 6x0.160 |
| V 208 P 152 (V208P152) | DSLA 152 PV 208 (DSLA152PV208) | ASLA 152 PV 208 (ASLA152PV208) | 0° | 152° | 6x0.160 |
| M 003 P 153 (M003P153) | DLLA 153 PM 003 (DLLA153PM003) | ALLA 153 PM 003 (ALLA153PM003) | 0° | 153° | 6x0.150 |
| M 0004 P 153 (M0004P153) | DLLA 153 PM 004 (DLLA153PM004) | ALLA 153 PM 004 (ALLA153PM004) | 0° | 153° | 6x0.150 |
| M 0005 P 153 (M0005P153) | DLLA 153 PM 005 (DLLA153PM005) | ALLA 153 PM 005 (ALLA153PM005) | 0° | 153° | 6x0.110 |
| M 0601 P 153 (M0601P153) | DLLA 153 PM 601 (DLLA153PM601) | ALLA 153 PM 601 (ALLA153PM601) | 0° | 153° | 6x0.155 |
| M 1002 P 153 (M1002P153) | DLLA 153 PM 1002 (DLLA153PM1002) | ALLA 153 PM 1002 (ALLA153PM1002) | 0° | 153° | 6x0.150 |
| M 0006 P 154 (M0006P154) | DLLA 154 PM 006 (DLLA154PM006) | ALLA 154 PM 006 (ALLA154PM006) | 0° | 154° | 6x0.200 |
| M 0012 P 154 (M0012P154) | DLLA 154 PM 012 (DLLA154PM012) | ALLA 154 PM 012 (ALLA154PM012) | 12*30' | 154° | 7x0.120 |
| M 0008 P 155 (M0008P155) | DLLA 155 PM 008 (DLLA155PM008) | ALLA 155 PM 008 (ALLA155PM008) | 15° | 155° | 7x0.110 |
| M 0018 P 155 (M0018P155) | DLLA 155 PM 018 (DLLA155PM018) | ALLA 155 PM 018 (ALLA155PM018) | 0° | 155° | 7x0.165 |
| M 0027 P 155 (M0027P155) | DLLA 155 PM 027 (DLLA155PM027) | ALLA 155 PM 027 (ALLA155PM027) | 13°30’ | 155° | 7x0.115 |
| M 0002 P 156 (M0002P156) | DLLA 156 PM 002 (DLLA156PM002) | ALLA 156 PM 002 (ALLA156PM002) | 0° | 156° | 6x0.120 |
| M 0011 P 162 (M0011P162) | DLLA 162 PM 011 (DLLA162PM011) | ALLA 162 PM 011 (ALLA162PM011) | 0° | 162° | 7x0.120 |
Frequently Asked Questions (FAQ)
Q1: Can I replace my original Siemens VDO nozzle with an ERIKC one directly?
A: Yes, ERIKC nozzles are direct-fit replacements and follow strict manufacturing tolerances.
Q2: How do I find out what nozzle my vehicle uses?
A: You can check the part number on the injector body, consult your vehicle manual, or contact us for assistance.
Q3: Are calibration or reprogramming required after nozzle replacement?
A: In most cases, no. However, some ECUs may require adaptation if injectors are electronically coded.
Conclusion
Siemens VDO diesel injector nozzles play a critical role in fuel delivery and emissions performance for modern diesel engines. Understanding the nozzle’s technical specifications—such as hole count, angle, and injector compatibility—is key to ensuring reliable engine operation.
